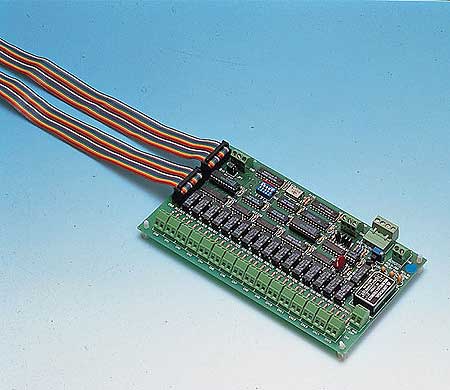

研华扩展端子板PCLD-788

  • 品牌 :

PCLD-788

现货供应研华扩展端子板PCLD-788

数量3个

型号:PCLD-788

Relay Scanner
Multiplexer Board

产品描述:

·16至1继电器转换
·完全隔离
·先断后通式继电器控制
·板上备有CJC冷端补偿电路

产品介紹

PCLD-788 multiplexes 16 channels into a single I/O channel of an A/D converter, voltmeter or IEEE-488-based instrument. Up to 16 PCLD-788s can be cascaded for a total of 256fully-isolated differential channels. The PCLD-788 can be controlled by any PC-LabCard? product via a 16-bit 20-pin digital output port, found on cards such as the PCL-711B,PCL-812PG or the PCL-818 series.Channel selection (0-15) and board selection (0-15) are done by programming the high-order four bits and low order four bits of a digital output byte from the main I/O card inuse.
PCLD-788 multiplexes 16 channels into a single I/O channel of an A/D converter, voltmeter or IEEE-488-based instrument. Up to 16 PCLD-788s can be cascaded for a total of 256fully-isolated differential channels. The PCLD-788 can be controlled by any PC-LabCard? product via a 16-bit 20-pin digital output port, found on cards such as the PCL-711B,PCL-812PG or the PCL-818 series.Channel selection (0-15) and board selection (0-15) are done by programming the high-order four bits and low order four bits of a digital output byte from the main I/O card inuse.
